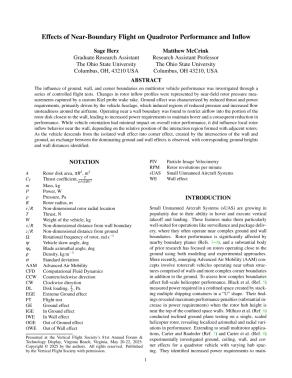

Abstract:
The influence of ground, wall, and corner boundaries on multirotor vehicle performance was investigated through a series of controlled flight tests. Changes in rotor inflow profiles were represented by near-field rotor pressure measurements captured by a custom Kiel probe wake rake. Ground effect was characterized by reduced thrust and power requirements, primarily driven by the vehicle fuselage, which induced regions of reduced pressure and increased flow unsteadiness around the airframe. Operating near a wall boundary was found to restrict airflow into the portion of the rotor disk closest to the wall, leading to increased power requirements to maintain hover and a consequent reduction in performance. While vehicle orientation had minimal impact on overall rotor performance, it did influence local rotor inflow behavior near the wall, depending on the relative position of the interaction region formed with adjacent rotors. As the vehicle descends from the isolated wall effect into corner effect, created by the intersection of the wall and ground, an exchange between the dominating ground and wall effects is observed, with corresponding ground heights and wall distances identified.
