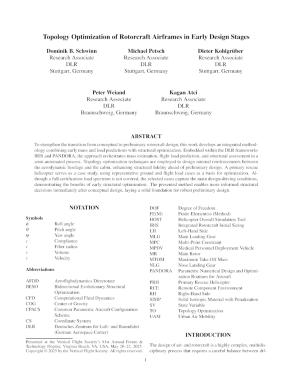

Abstract:
To strengthen the transition from conceptual to preliminary rotorcraft design, this work develops an integrated methodology combining early mass and load predictions with structural optimization. Embedded within the DLR frameworks IRIS and PANDORA, the approach orchestrates mass estimation, flight load prediction, and structural assessment in a semi-automated process. Topology optimization techniques are employed to design internal reinforcements between the aerodynamic fuselage and the cabin, enhancing structural fidelity ahead of preliminary design. A primary rescue helicopter serves as a case study, using representative ground and flight load cases as a basis for optimization. Although a full certification load spectrum is not covered, the selected cases capture the main design-driving conditions, demonstrating the benefits of early structural optimization. The presented method enables more informed structural decisions immediately after conceptual design, laying a solid foundation for robust preliminary design.
