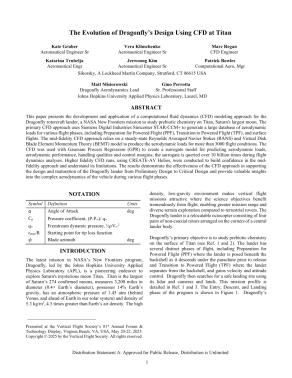

Abstract:
This paper presents the development and application of a computational fluid dynamics (CFD) modeling approach for the Dragonfly rotorcraft lander, a NASA New Frontiers mission to study prebiotic chemistry on Titan, Saturn's largest moon. The primary CFD approach uses Siemens Digital Industries Simcenter STAR-CCM+ to generate a large database of aerodynamic loads for various flight phases, including Preparation for Powered Flight (PPF), Transition to Powered Flight (TPF), and surface flights. The mid-fidelity CFD approach relies on a steady-state Reynolds Averaged Navier Stokes (RANS) and Virtual Disk Blade Element Momentum Theory (BEMT) model to produce the aerodynamic loads for more than 3000 flight conditions. The CFD was used with Gaussian Process Regression (GPR) to create a surrogate model for predicting aerodynamic loads, aerodynamic performance, handling qualities and control margins; the surrogate is queried over 10 billion times during flight dynamics analyses. Higher fidelity CFD runs, using CREATE-AV Helios, were conducted to build confidence in the midfidelity approach and understand its limitations. The results demonstrate the effectiveness of the CFD approach in supporting the design and maturation of the Dragonfly lander from Preliminary Design to Critical Design and provide valuable insights into the complex aerodynamics of the vehicle during various flight phases.
