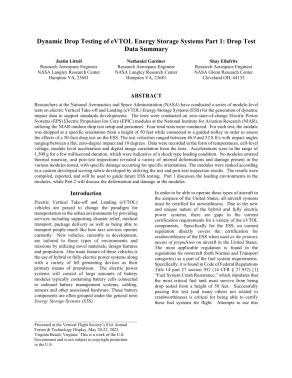

Abstract:
Researchers at the National Aeronautics and Space Administration (NASA) have conducted a series of module-level tests on electric Vertical Take-off and Landing (eVTOL) Energy Storage Systems (ESS) for the generation of dynamic impact data to support standards developments. The tests were conducted on zero-state-of-charge Electric Power Systems (EPS) Electric Propulsion Ion Core (EPIC) modules at the National Institute for Aviation Research (NIAR), utilizing the NIAR outdoor drop test setup and personnel. Four total tests were conducted. For each test, the module was dropped at a specific orientation from a height of 50 feet while connected to a guided trolley in order to assess the effects of a 50-foot drop test on the ESS. The test velocities ranged between 46.9 and 52.8 ft/s with impact angles ranging between a flat, zero-degree impact and 18 degrees. Data were recorded in the form of temperatures, cell-level voltage, module level acceleration and digital image correlation from the tests. Accelerations were in the range of 1,500 g for a few millisecond duration, which were indicative of a shock type loading condition. No modules entered thermal runaway, and post-test inspections revealed a variety of internal deformations and damage present in the various modules tested, with specific damage occurring for specific orientations. The modules were ranked according to a custom developed scoring rubric developed by utilizing the test and post-test inspection results. The results were compiled, reported, and will be used to guide future ESS testing. Part 1 discusses the loading environments in the modules, while Part 2 will discuss the deformation and damage in the modules.
