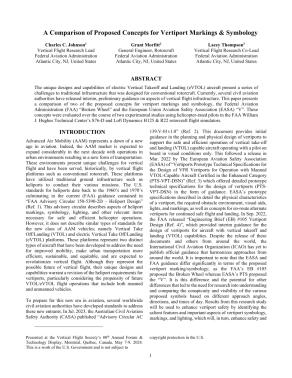

A Comparison of Proposed Concepts for Vertiport Markings and Symbology

Charles C. Johnson; Grant Morfitt; Lacey Thompson

doi:10.4050/F-0080-2024-1275

Unable to log in or get member pricing? Having trouble changing your password?

Please review our Frequently Asked Questions for complete information on these and other common situations.

Vertical Flight Library & Store

CHECKOUT

0 Item(s) In Cart Total: $0.00

A Comparison of Proposed Concepts for Vertiport Markings and Symbology

Charles C. Johnson, Grant Morfitt, Lacey Thompson, Federal Aviation Administration - FAA

May 7, 2024

https://doi.org/10.4050/F-0080-2024-1275

Abstract:
The unique designs and capabilities of electric Vertical Takeoff and Landing (eVTOL) aircraft present a series of challenges to traditional infrastructure that was designed for conventional rotorcraft. Currently, several civil aviation authorities have released interim, preliminary guidance on aspects of vertical flight infrastructure. This paper presents a comparison of two of the proposed concepts for vertiport markings and symbology, the Federal Aviation Administration (FAA) "Broken Wheel" and the European Union Aviation Safety Association (EASA) "V". These concepts were evaluated over the course of two experimental studies using helicopter-rated pilots in the FAA William J. Hughes Technical Center's S76-D and Loft Dynamics H125 and R22 rotorcraft flight simulators.
